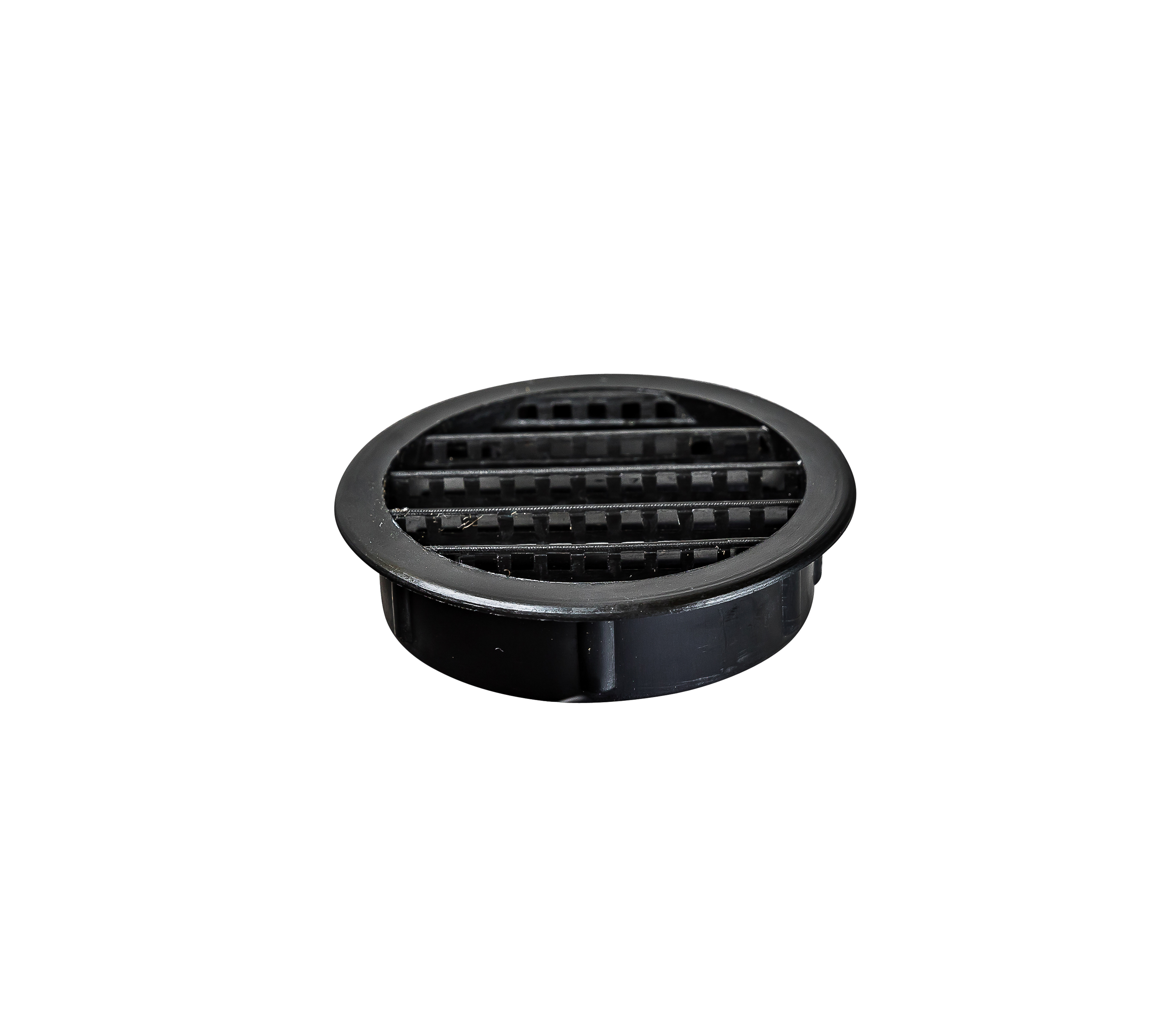

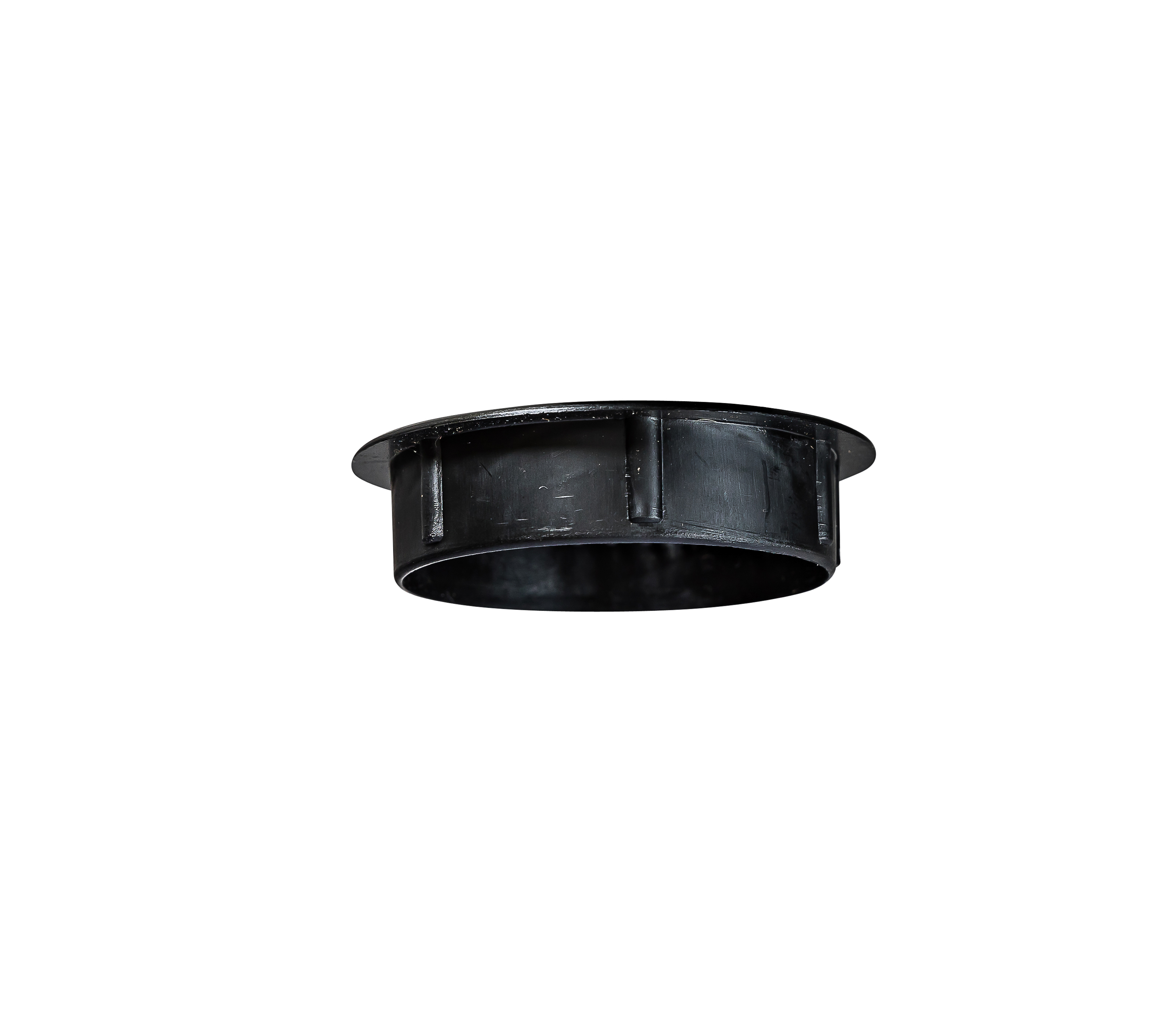

Round Plastic Louvers

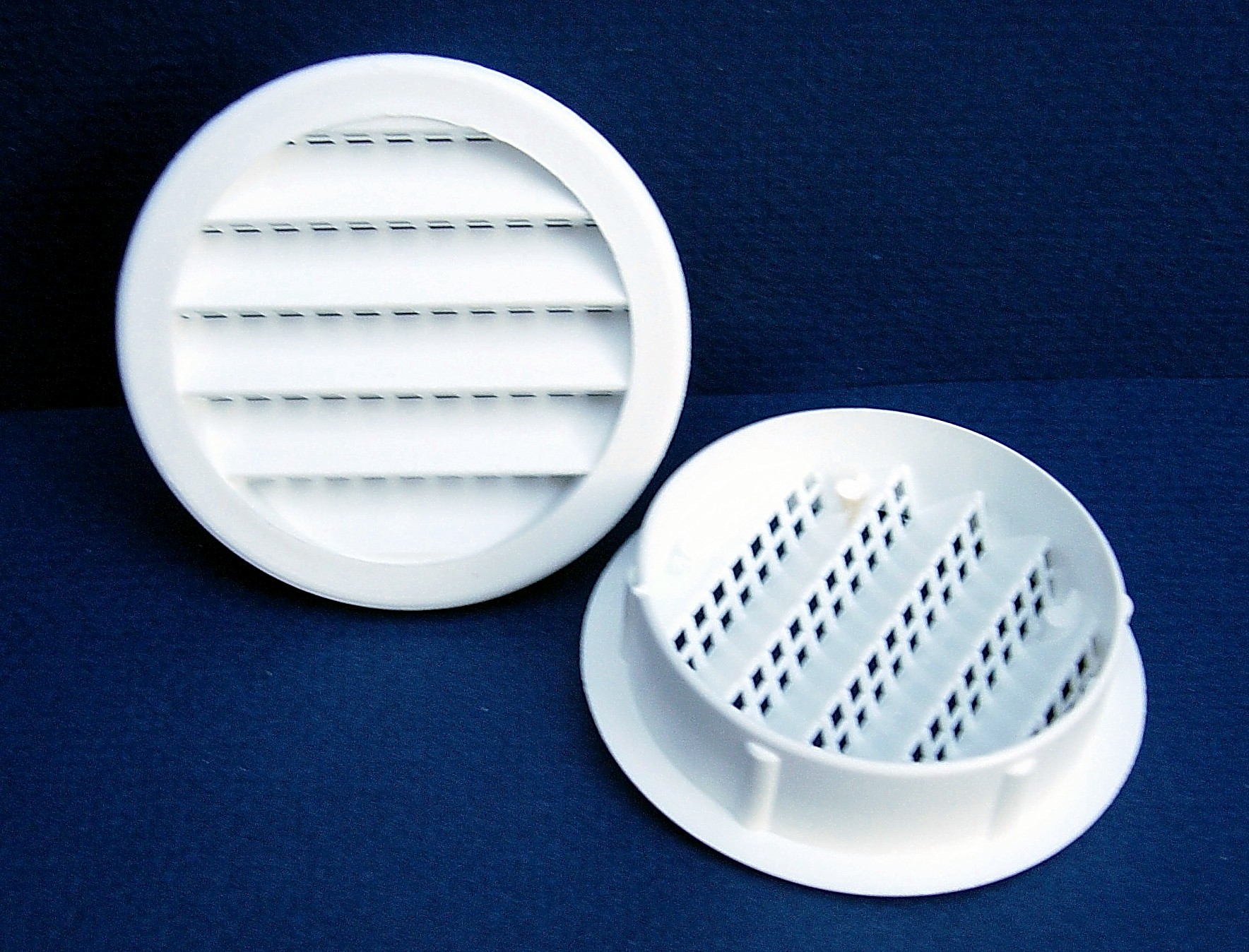

 PLW-100 (White finish)

PLW-100 (White finish)

PLW-100 (White finish)

Plastic

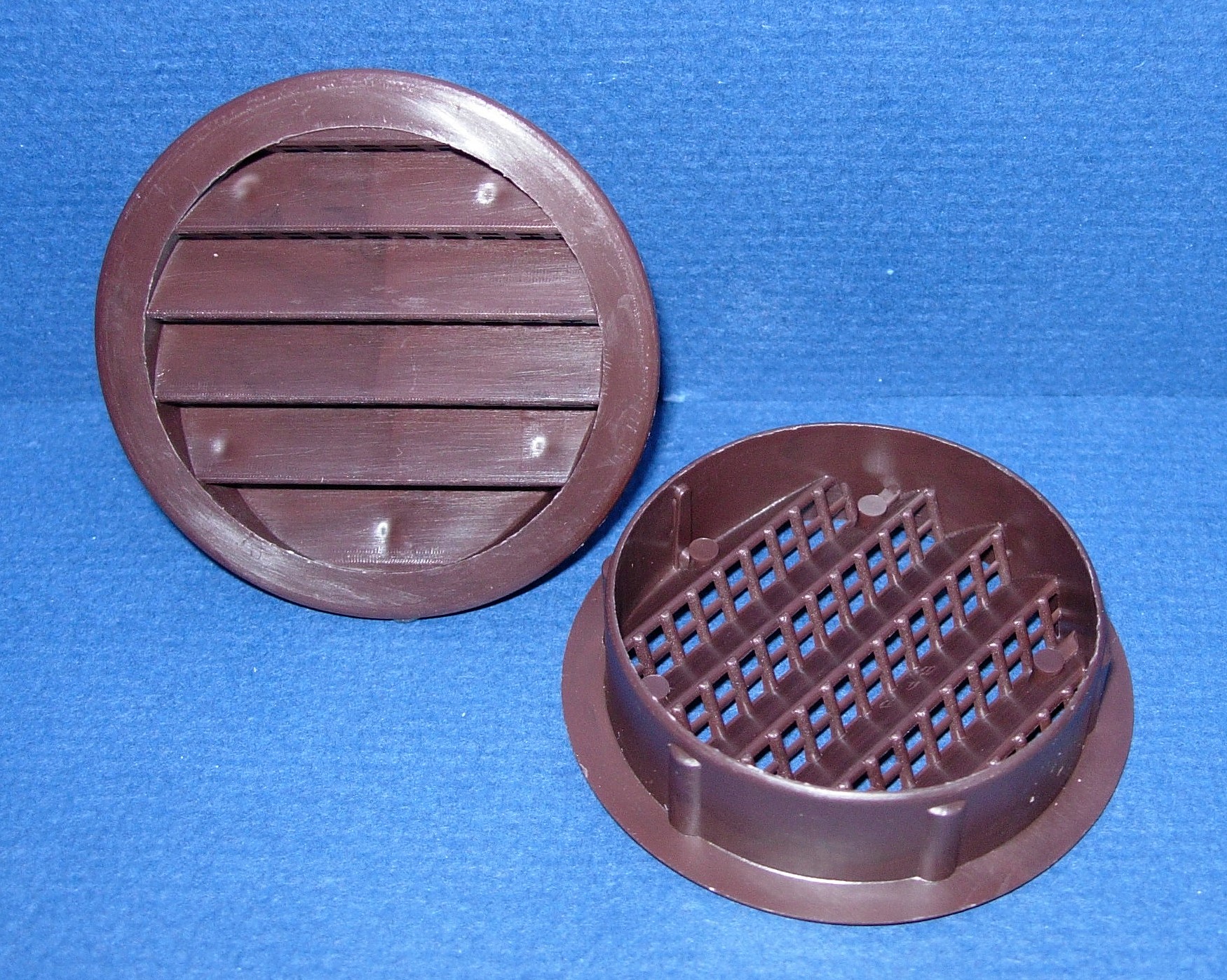

PLW-100, PLB-100 & PLBL-100 Series
Dimensional Specifications

Dimension in Inches
Louver Size A B C D
No.
Fins
Net Free Area
Square Inches
Visual Size
Specifications

1 0.980 1.188 0.500 4 0.200
1.5 1.476 1.750 0.500 4 0.800
2 1.977 2.250 0.500 5 1.500
2.5 2.461 3.000 0.625 5 1.750
3 2.970 3.625 0.625 6 2.740
4 3.975 4.813 0.625 9 4.800
5 4.952 6.250 1.438 8 7.360
6 5.970 7.375 1.438 10 9.210
Specifications subject to change without notification


We use high-quality wire and cable grade polypropylene to manufacture our round plastic louvers, which are UV stabilized.

Our round plastic louvers features include:

  • Easy installation
  • Sizes from 1" to 6" as well as 1.5" and 2.5"
  • Stocked in black, brown or white*
  • Unique polypropylene screen system

*For large quantities, we can entertain different color requests.
