RLP, RWP, RBLP & RBP PLUGS

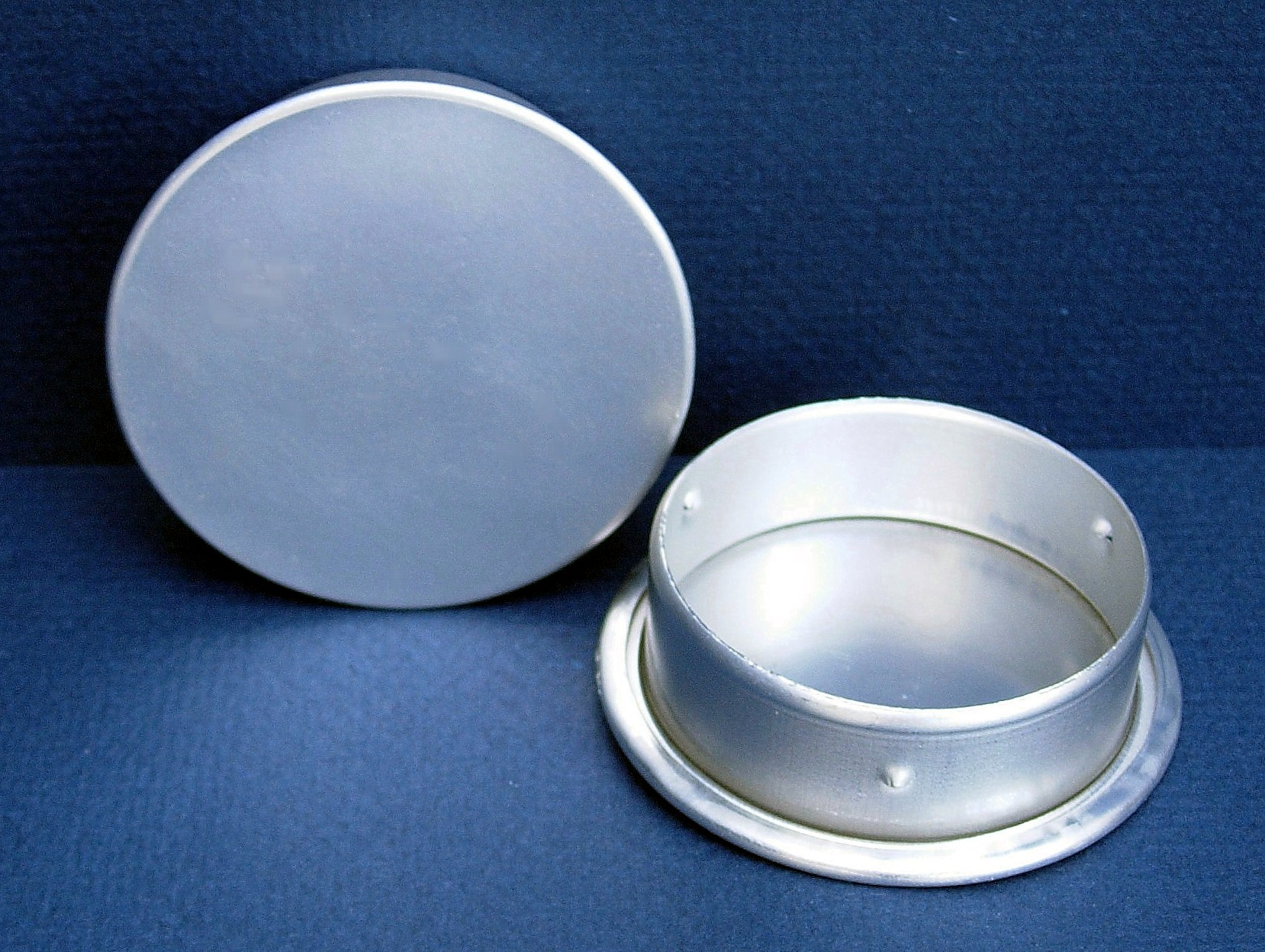

RLP-100 (Mill finish)

RLP-100 (Mill finish)

RLP-100 (Mill finish)

Aluminum Spec Sheet
RLP-100, RWP-100, RBLP-100 & RBP-100 Series (Aluminum Plugs)
Dimensional Specifications

Dimension in Inches
Louver Size A B C D
Screen
Dia.
E
No.
Fins
Net Free Area
Square Inches
Visual Size
Specifications

1 0.985 1.219 0.406 N/A N/A N/A
1.5 1.485 1.813 0.563 N/A N/A N/A
2 1.980 2.391 0.625 N/A N/A N/A
2.5 2.485 2.907 0.625 N/A N/A N/A
3 2.980 3.530 0.688 N/A N/A N/A
4 3.980 4.625 0.750 N/A N/A N/A

Specifications subject to change without notification

We use a minimum of .020-gauge aluminum for our round aluminum louvers, screens and plugs - most manufacturers use a thinner gauge, which leads to a weaker product. This thick, durable material maximizes lifespan and ensures proper ventilation needs.

Our round aluminum plug features include:

  • Easy installation
  • Rugged construction
  • Sizes from 1" to 4" as well as 1.5" and 2.5"
  • Stocked in a mill, white, black or brown finish
