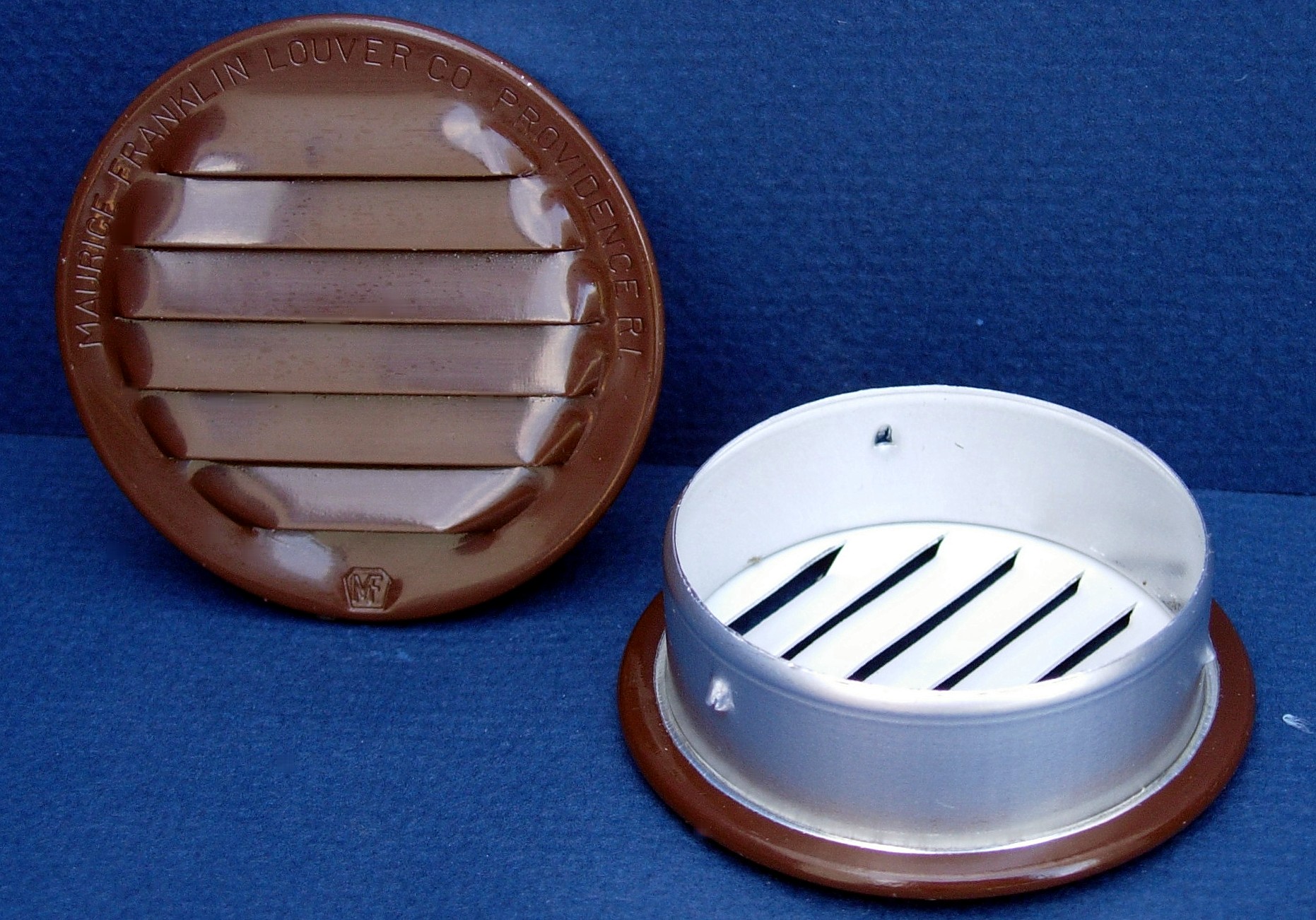

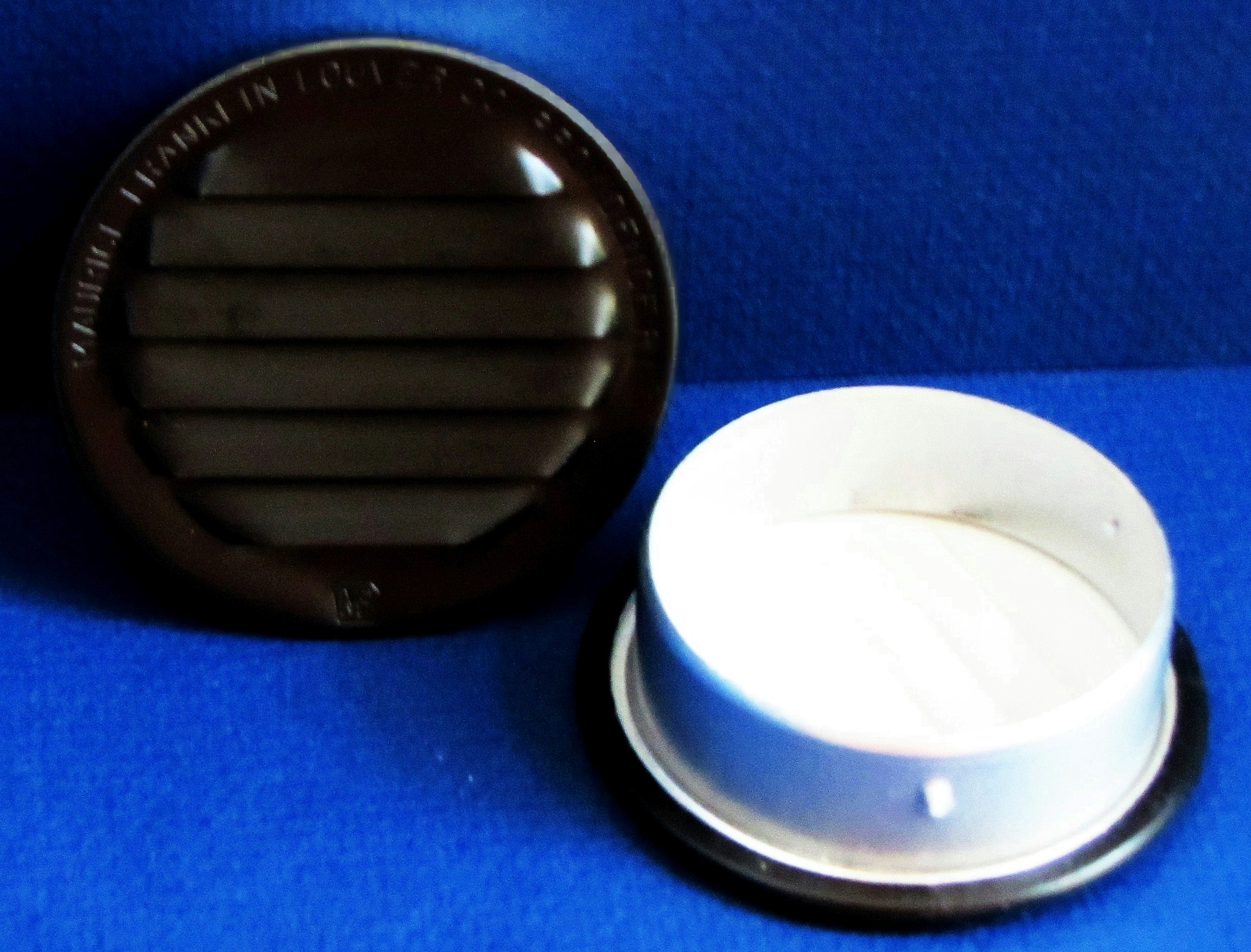

RNS, WNS, BLNS & BNS Louvers

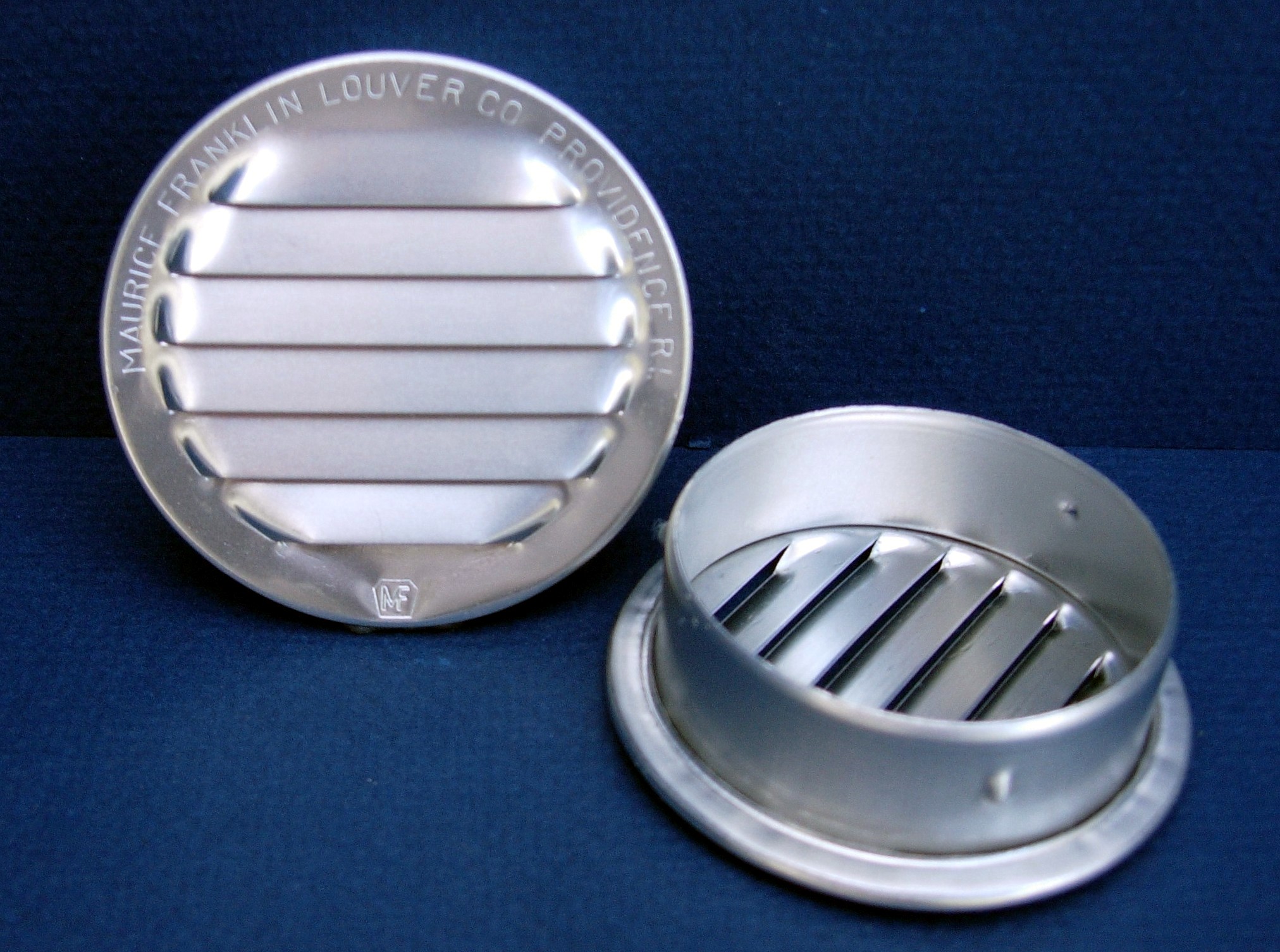

RNS-100 (Mill finish)

RNS-100 (Mill finish)

RNS-100 (Mill finish)

Aluminum Spec Sheet

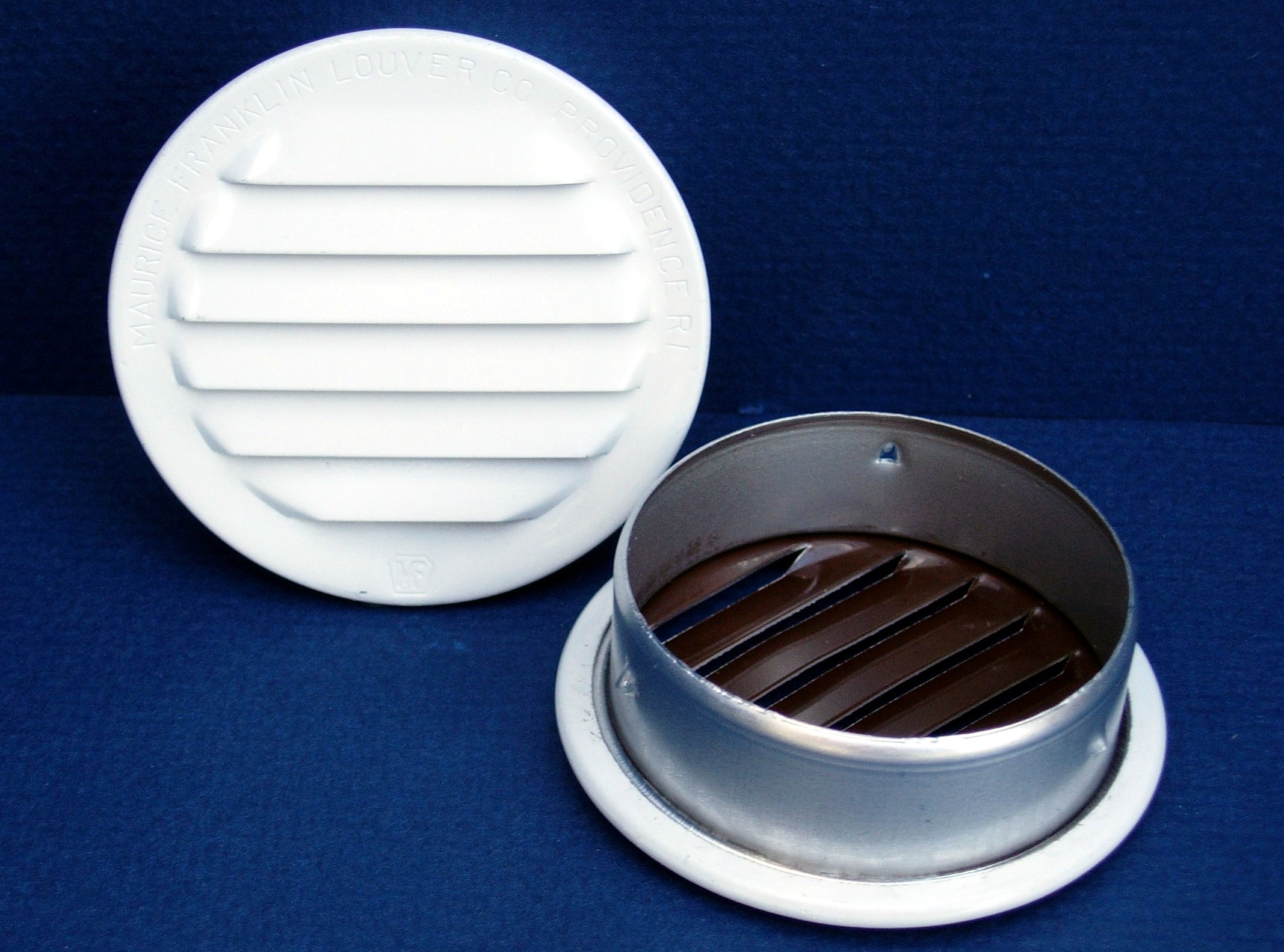

RNS-100, WNS-100, BLNS-100 & BNS-100 Series (Standard with NO insect screen)
Dimensional Specifications

Dimension in Inches
Louver Size A B C D
Screen
Dia.
E
No.
Fins
Net Free Area
Square Inches
Visual Size
Specifications

1 0.985 1.219 0.406 N/A 5 0.195
1.5 1.485 1.813 0.563 N/A 5 0.419
2 1.980 2.391 0.625 N/A 6 0.842
2.5 2.485 2.907 0.625 N/A 6 1.267
3 2.980 3.530 0.688 N/A 6 1.822
4 3.980 4.625 0.750 N/A 9 3.682
6 5.990 6.688 0.813 N/A 8 5.787

Specifications subject to change without notification

We use a minimum of .020-gauge aluminum for our round aluminum louvers, screens and plugs - most manufacturers use a thinner gauge, which leads to a weaker product. This thick, durable material maximizes lifespan and ensures proper ventilation needs.

Our round aluminum louver features include:

  • Easy installation
  • Rugged construction
  • Sizes from 1" to 6" as well as 1.5" and 2.5"
  • Stocked in a mill, white, black or brown finish
