RL-100, RLW-100, RLBL-100 & RLB-100 Series

Aluminum Spec Sheet RL-100, RLW-100, RLBL-100 & RLB-100 Series (standard with insect screen) Dimensional Specifications
Dimension in Inches
Louver Size	A	B	C	D Screen Dia.	E No. Fins	Net Free Area Square Inches
1	0.985	1.219	0.406	0.875	5	0.185
1.5	1.485	1.813	0.563	1.375	5	0.399
2	1.980	2.391	0.625	1.938	6	0.803
2.5	2.485	2.907	0.625	2.344	6	1.210
3	2.980	3.530	0.688	2.875	6	1.735
4	3.980	4.625	0.750	3.875	9	3.500
6	5.990	6.688	0.813	5.875	8	5.490

Specifications subject to change without notification

We use a minimum of .020-gauge aluminum for our round aluminum louvers, screens and plugs - most manufacturers use a thinner gauge, which leads to a weaker product. This thick, durable material maximizes lifespan and ensures proper ventilation needs.
Our round aluminum louver features include:
    •    Easy installation
    •    Rugged construction
    •    Sizes from 1" to 6" as well as 1.5" and 2.5"

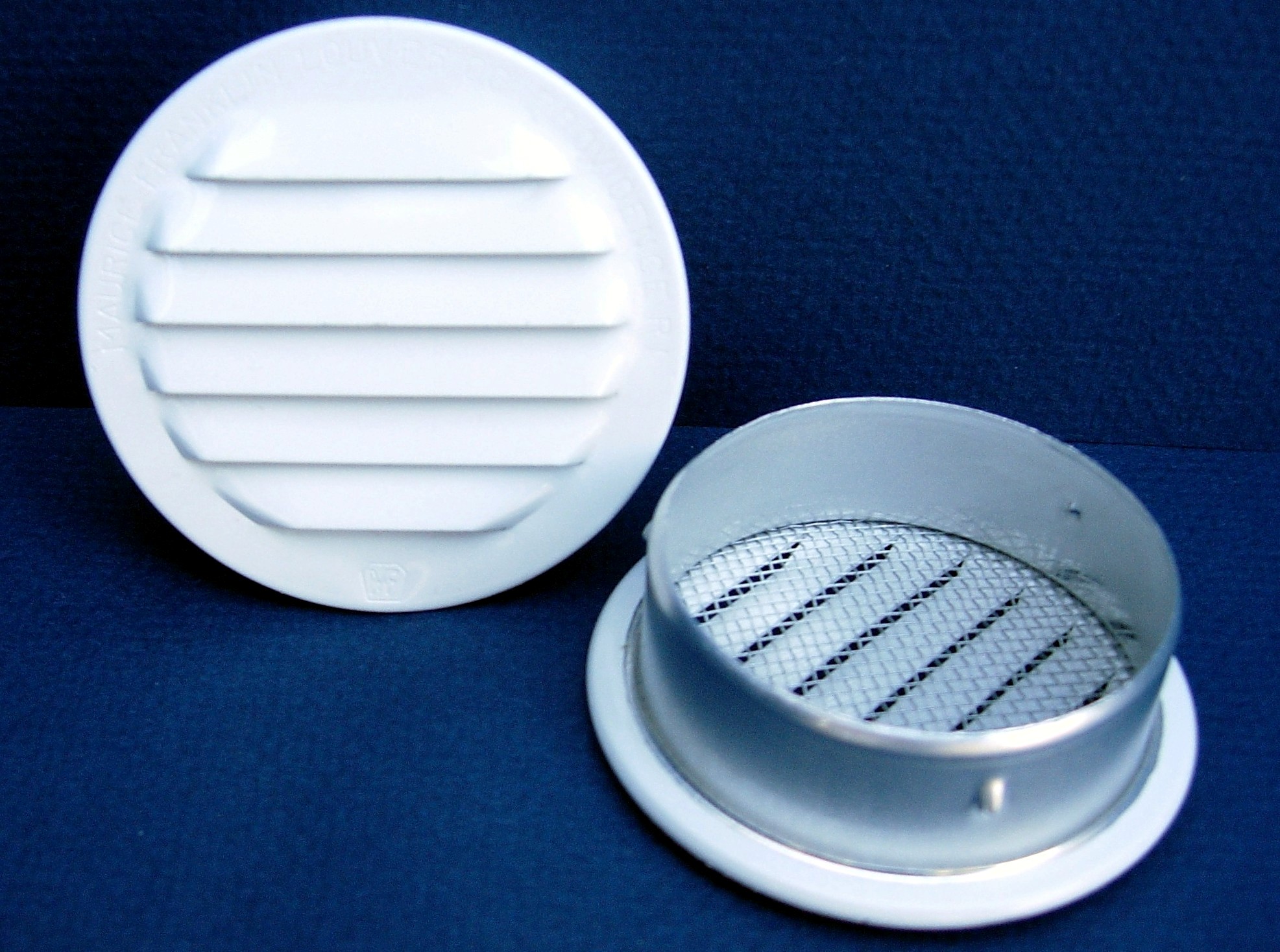

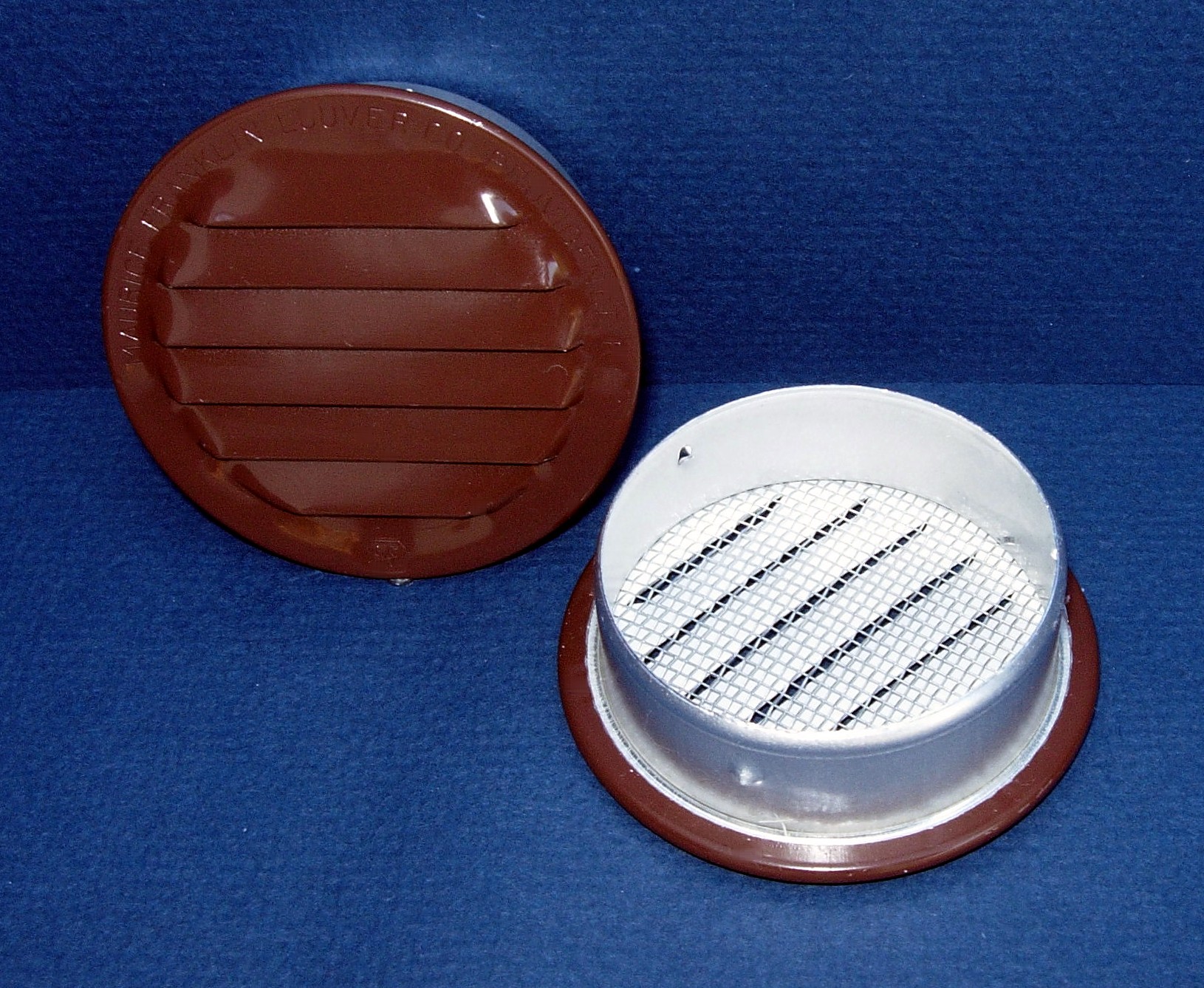

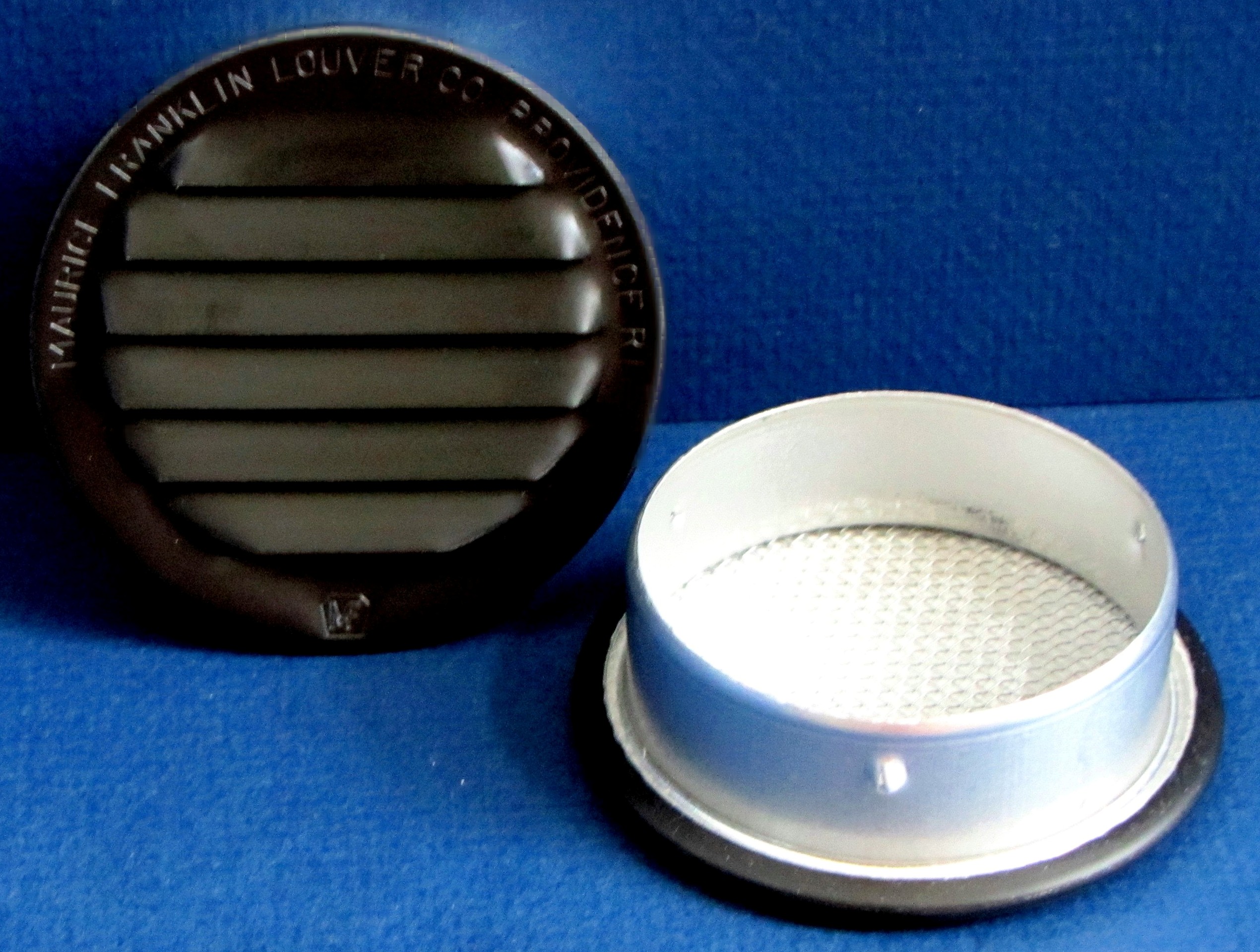

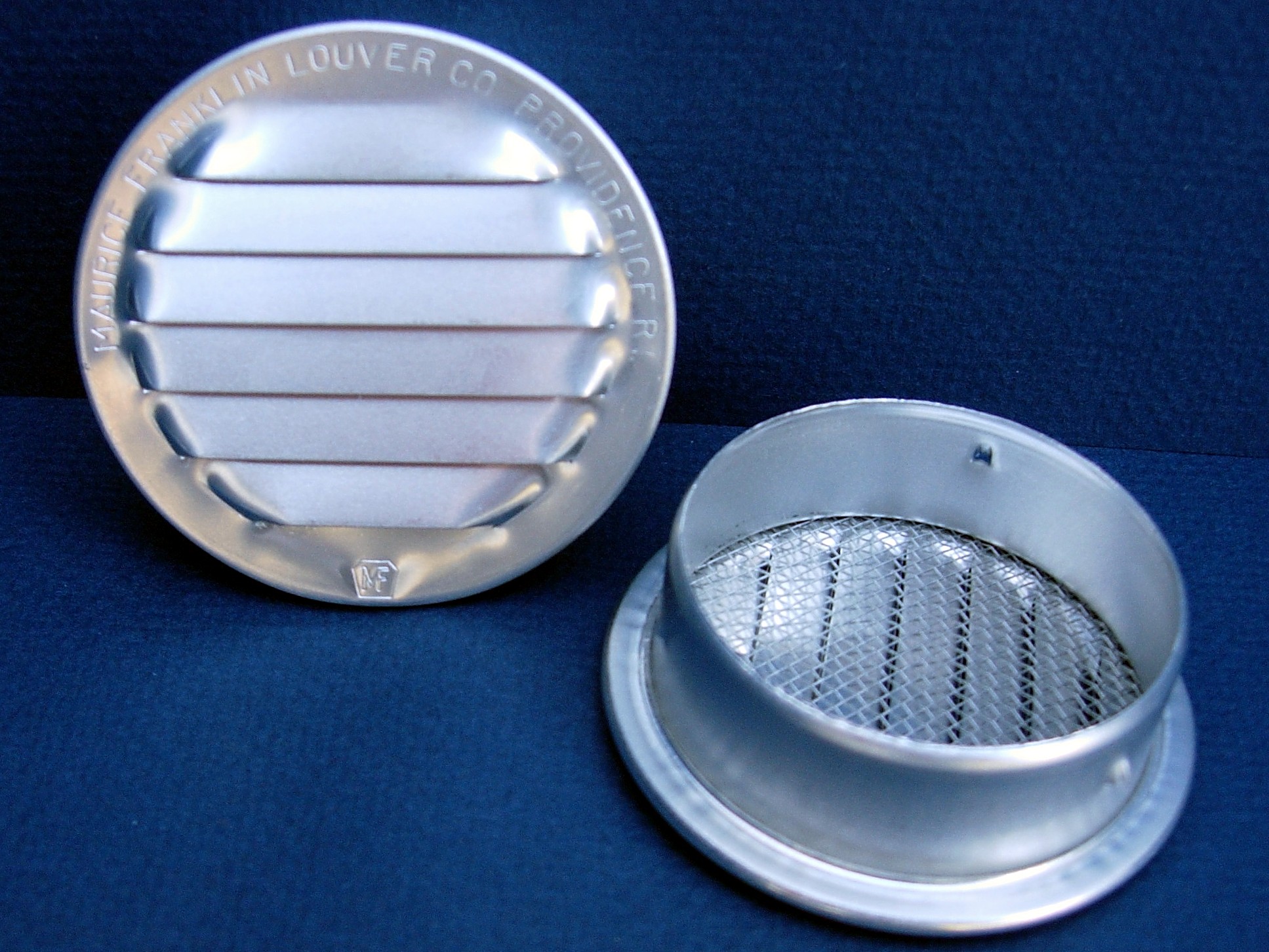

    •    Stocked in a mill, white, black or brown finish
